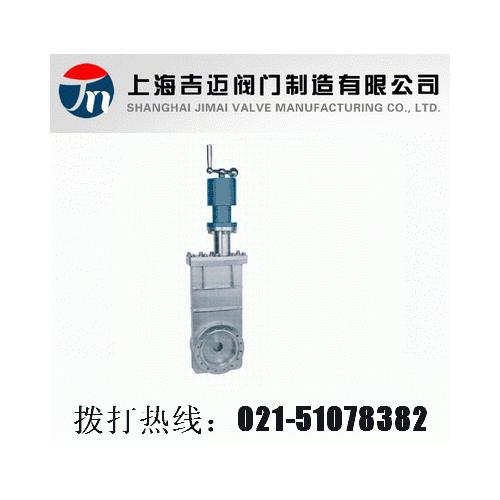

CC型手動超高真空插板閥是以手柄帶動閥板作上下運動使閥板開啟或關閉。閥門用于接通或切斷真空管路中的氣流。
適用介質為純凈空氣和非腐蝕性氣體。 |
|
|
|
|
■ |
CC
Manual Ultra-high Vacuum Gate Valve |
|
|
|
|
■ |
CC manual ultra-high vacuum gate valve uses a handle to drive valve disc up and down to perform open and close action. It is used to put through or cut off the airflow in vacuum pipeline.
Applicable medium can be pure air and noncorrosive gases. |
|
|
|
|
■ |
主要技術性能
Main Technical Performance |
|
|
|
|
■
■
■ |
|
適用范圍：Applicability |
105～1.3×10-7Pa |
|
閥門漏率：Valve Leak Rate |
≤1.3×10-7Pa.L/S. |
|
適用溫度：Applicable Temperature |
-30～+150℃ |
閥門開啟時閥板兩側的壓差：
The differential pressure between the two sides of valve disc upon valve opening: |
≤2.7×103Pa. |
|
|
|
|
|
■ |
主要零件材料 http://www.famen058.com
Materials of Main Parts |
|
|
|
|
■
■ |
閥體、閥板：不銹鋼
密封件：氟橡膠、波紋管(軸封)、丁腈橡膠。
Body, and disc: stainless steel
Sealing element: Viton, bellows(shaft seal), NBR |
|
|
|
|
CONSTRUCTION FIGHTS(mm) |
|
|
|
■ |
外形及連接尺寸(mm)
Overall and Connection Dimensions(mm) |
 |
|
|
Model
型號
|
DN
|
A
|
H
|
D
|
Do
|
D1
|
D2
|
D3
|
L
|
L1
|
G
|
E
|
n-d
|
法蘭標準
|
|
CC-50
|
50
|
60
|
92
|
89
|
72.4
|
61.6
|
55.6
|
|
515
|
153
|
220
|
124
|
8-M8
|
GB6071
|
|
CC-63
|
63
|
65
|
105
|
114
|
92.1
|
82.6
|
76.6
|
|
566
|
180
|
220
|
124
|
8-M8
|
|
CC-80
|
80
|
65
|
130
|
130
|
110
|
99
|
93
|
|
603
|
200
|
220
|
124
|
16-M8
|
|
CC-100
|
100
|
70
|
152
|
152
|
130.2
|
120.7
|
114.7
|
|
653
|
267
|
220
|
124
|
16-M8
|
|
CC-150
|
150
|
70
|
202
|
202
|
181
|
171.5
|
165.5
|
|
771
|
350
|
270
|
150
|
20-M8
|
|
CC-200
|
200
|
80
|
251
|
253
|
231.8
|
222.3
|
216.6
|
|
889
|
424
|
270
|
150
|
24-M8
|
|
CC-250
|
250
|
85
|
300
|
314
|
288
|
308
|
275
|
271
|
1127
|
550
|
298
|
200
|
24-M10
|
JB5278
|
|
CC-300
|
300
|
85
|
352
|
365
|
338
|
353
|
323
|
318
|
1197
|
613
|
298
|
200
|
32-M10
|
|
|
CC-320
|
320
|
85
|
372
|
385
|
357
|
379
|
344
|
340
|
1197
|
613
|
298
|
200
|
36-M10
|
JB5278
|
|
